AC SCHNITZER
|
|
| |
High Performance
Brake System |
|
|
E90/92 M3 ブレーキシステム |
| |
| Technical Data Breke system"Front" |
| |
AC SCHNITZER
ACS3 Sport Coupe |
BMW M3
Coupe |
| |
|
|
| Type |
6-piston fixed caliper |
1-piston floating caliper |
 |
| Brake disc size |
380 x 35 mm |
360 x 30 mm |
|
| Brake disc weight |
9.1 kg |
10.18 kg |
|
| Caliper weight (pads含む) |
5.8 kg |
6.56 kg |
|
| Slotted / Drilled |
Slotted |
Drilled |
|
| Internally vented |
Yes |
Yes |
|
|
| |
| Technical Data Breke system"Rear" |
| |
AC SCHNITZER
ACS3 Sport Coupe |
BMW M3
Coupe |
| |
|
|
| Type |
4-piston fixed caliper |
1-piston floating caliper |
|
| Brake disc size |
355 x 32 mm |
350 x 24 mm |
|
| Brake disc weight |
8.98 kg |
9.08 kg |
|
| Caliper weight (pads含) |
5.06 kg |
5.06 kg |
|
| Slotted / Drilled |
Slotted |
Drilled |
|
| Internally vented |
Yes |
Yes |
|
|
| |
| Braking distance and deceleration values |
| |
AC SCHNITZER
ACS3 Sport Coupe* |
BMW M3
Coupe** |
| |
|
|
| From 100 km/h (warm) |
33.8 m |
34.3 m |
|
| From 200 km/h (warm) |
132.2 m |
133.9 m |
|
|
| *ドイツ"sport auto"誌 Test 11/2008 |
| **ドイツ"sport auto"誌 Test 12/2007 |
| |

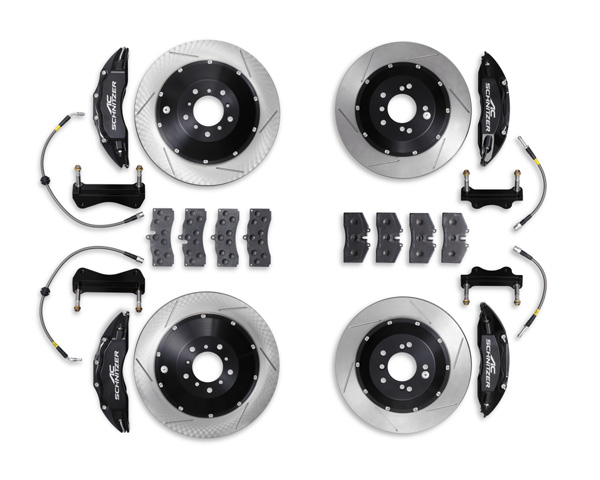

| AC SCHNITZER High Performance Brake System |
| |
|
|
| 適合車種：E90 M3/E92 M3 |
|
|
| |
|
|
| フロント |
6-piston |
\780,000 (\819,000) |
|
| フロントキット内容：6-piston caliper/2brake
discs/4brake pads/2brake lines/2brackets |
| |
|
|
| リア |
4-piston |
\650,000 (\682,500) |
|
| リアキット内容：4-piston caliper/2brake discs/4brake
pads/2brake lines/2brackets |
| |
|
|
| フロント/リア セット |
F:6-piston/R:4-piston |
\1,380,000 (\1,449,000) |
|
| キット内容フロント：6-piston caliper/2brake discs/4brake
pads/2brake lines/2brackets |
| キット内容リア：4-piston caliper/2brake discs/4brake
pads/2brake lines/2brackets |
|
| |
|

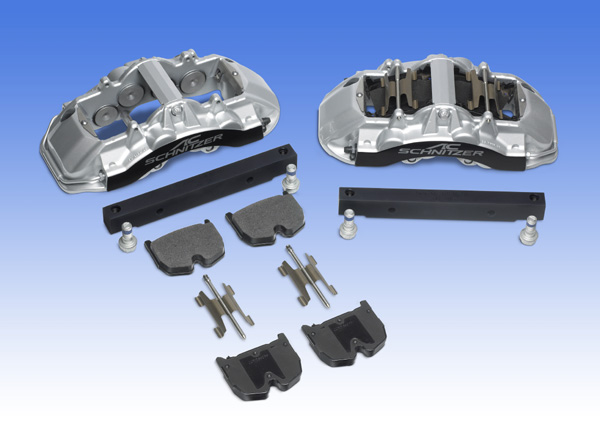

| 8-piston High Performance Brake System |
|
| |
| AC SCHNITZER High Performance Brake System |
| |
|
|
| 適合車種：E90 335/E91 335/E92 335/E93 335 |
| |
|
|
| フロント |
8-piston/Drilled disc (374x36mm) |
\820,000 (\861,000) |
|
| キット内容：8-piston caliper/2brake
discs/8brake pads/brackets set |
| |
|
|
| |
|
|
| 適合車種：E60 545i,550i,M5/E61
545i,550i/E63 645Ci,650Ci,M6/E64 645Ci,650Ci,M6 |
| |
|
|
| フロント |
8-piston |
\680,000 (\714,000) |
|
| キット内容：8-piston caliper/8brake pads/brackets
set |
| *ディスクは純正使用 |
| |
|
|
|
| |
予告無く価格や仕様等が変更になる場合もございます。 |
